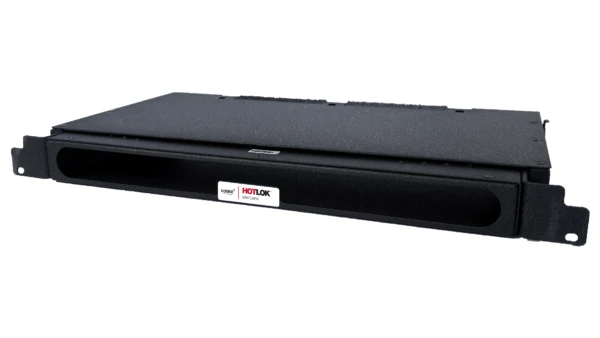

SwitchFix – SF001-PR4
Network switch equipment typically sits at the top and back portion of the server rack. This placement makes it difficult for cold air from the cold aisle to travel from the front of the rack to the intake side(s) of the Network Switch. The SwitchFix® solves this problem by extending from the front of the rack in the cold aisle to the switch at the back of the rack. This allows cold air from the cold aisle to reach the network equipment for proper cooling
The SwitchFix comes in a variety of sizes to meet the needs of many switches currently used in today’s data centers. Each unit adjusts in depth to ensure an optimal flow of cooled air through to the installed switch. The SwitchFix easily accommodates front, rear, and side switch intakes and exhaust. The SwitchFix’s passive airflow system channels air from the cold aisle to the switch, allowing cold air to pass through the switch intakes and prevents bypass and recirculated airflow. This prevents hot exhaust air from recycling through the installed equipment. This passive switch cooling solution can improve switch performance and life expectancy.
Product Number
SF001-PR4 SwitchFix, Passive, Rear Intake, 1U, Adjustable 10.63″-14.63″, Black
MSRP: $380.00 (each)
Which SwitchFix should you get? Refer to the SwitchFix Finder in the tabs below.
- Channels cold air to the switch
- Prevents hot air recirculation
- Maintains cold aisle/hot aisle segregation
- Adjustable for a variety of depths
- Passive airflow circulation
- Maintains switch reliability and improves longevity of the switch
- Augments and improves upon airflow management best practices
- Supports over 200 switches in a passive application or 150 switches in an active* application
- No additional power supply is needed
- Supports 1U and 2U switches**
*Active units are available upon request.
**See the SwitchFix Cross Reference Guide to determine which SwitchFix meets your needs.
| Switch Manufacturer | Switch Model | RMU | Switch Depth | Switch Intake | Switch Exhaust | Upsite Part Number | Alternative Upsite Part Number |
|---|---|---|---|---|---|---|---|
| ACS | 48 Cyclade | 1 | side | side | SF001-PS1 | ||
| Alcatel | 6850 Omniswitch | 1 | side | side | SF001-PS1 | ||
| Alcatel | 6900 Omniswitch | 1 | 22" | rear | front | SF001-PR1 | |
| Alcatel | 6900 Omniswitch | 1 | 22" | front | rear | Custom | |
| Allied Telesys | AT9924T | 1 | 16.7" | front | rear | Custom | |
| Arista | 7010T | 1 | 10" | front | rear | Custom | |
| Arista | 7010T | 1 | 10" | rear | front | SF001-PR5 | |
| Arista | 7048-A | 1 | 16" | rear | front | SF001-PR4 | SF001-PR3 |
| Arista | 7048-A | 1 | 16" | front | rear | Custom | |
| Arista | 7048T | 1 | 16" | front | rear | Custom | |
| Arista | 7048T | 1 | 16" | rear | front | SF001-PR4 | SF001-PR3 |
| Arista | 7050SX | 1 | 18.1" | front | rear | Custom | |
| Arista | 7050SX | 1 | 18.1" | rear | front | SF001-PR2 | |
| Arista | 7050SX | 2 | 18.1" | front | rear | Custom | |
| Arista | 7050SX | 2 | 18.1" | rear | front | SF002-PR3 | |
| Arista | 7050T | 1 | 16" | front | rear | Custom | |
| Arista | 7050T | 1 | 16" | rear | front | SF001-PR4 | SF001-PR3 |
| Arista | 7050TX-128 | 2 | 18.1" | rear | front | SF002-PR3 | |
| Arista | 7050TX-128 | 2 | 18.1" | front | rear | Custom | |
| Arista | 7060 | 1 | 16" | rear | front | SF001-PR4 | SF001-PR3 |
| Arista | 7148SX | 1 | 16" | front | rear | Custom | |
| Arista | 7148SX | 1 | 16" | rear | front | SF001-PR4 | SF001-PR3 |
| Arista | 7150 | 1 | 16" | front | rear | Custom | |
| Arista | 7150 | 1 | 16" | rear | front | SF001-PR4 | SF001-PR3 |
| Arista | 7260 | 2 | 18" | rear | front | SF002-PR3 | |
| Arista | 7280CR | 2 | 22.2" | Rear | Front | SF002-PR2 | |
| Arista | 7280S | 1 | 16" | rear | front | SF001-PR4 | SF001-PR3 |
| Arista | 7280SE | 1 | 20.6 | front | rear | Custom | |
| Arista | 7280SE | 1 | 20.6 | rear | front | SF001-PR2 | |
| Aruba | 3400 | 1 | 11.7" | side | side | SF001-PS1 | |
| Blade Rackswitch | G8052 | 1 | 17.5" | front | rear | Custom | |
| Blade Rackswitch | G8052 | 1 | 17.5" | rear | front | SF001-PR4 | SF001-PR3 |
| Brocade | 300 | 1 | 12.07" | rear | front | SF001-PR5 | |
| Brocade | 300a | 1 | 12.07" | rear | front | SF001-PR5 | |
| Brocade | 624 | 1 | 17.2" | front | rear | Custom | |
| Brocade | 624 | 1 | 17.2" | rear | front | SF001-PR2 | |
| Brocade | 624-E | 1 | 17.2" | front | rear | Custom | |
| Brocade | 624-I | 1 | 17.2" | rear | front | SF001-PR2 | |
| Brocade | 624S | 1 | 17.2" | front/ side | rear | SF001-PD1 | |
| Brocade | 648 | 1 | 17.2" | front | rear | Custom | |
| Brocade | 648 | 1 | 17.2" | rear | front | SF001-PR2 | |
| Brocade | 648-E | 1 | 17.2" | front | rear | Custom | |
| Brocade | 648-I | 1 | 17.2" | rear | front | SF001-PR2 | |
| Brocade | 648S | 1 | 17.2" | front/ side | rear | SF001-PD1 | |
| Brocade | 6520 | 2 | 24.01" | front | rear | Custom | |
| Brocade | 6520 | 2 | 24.01" | rear | front | SF002-PR1 | |
| Brocade | 6740 | 1 | 16.25" | front | rear | Custom | |
| Brocade | 6740 | 1 | 16.25" | rear | front | SF001-PR4 | SF001-PR3 |
| Brocade | 6740T | 1 | 21.12" | rear | front | SF001-PR2 | |
| Brocade | 6740T | 1 | 21.12" | front | rear | Custom | |
| Brocade | 6740T-1G | 1 | 21.12" | front | rear | Custom | |
| Brocade | 6740T-1G | 1 | 21.12" | rear | front | SF001-PR2 | |
| Brocade | 6940-144S | 2 | 18" | rear | front | Custom | |
| Brocade | 6940-144S | 2 | 18" | front | rear | Custom | |
| Brocade | 6940-36Q | 1 | 16.25" | rear | front | SF001-PR4 | SF001-PR3 |
| Brocade | 6940-36Q | 1 | 16.25" | front | rear | Custom | |
| Cisco | 1001-X-AES-AX | 1 | 18.5" | front | rear | Custom | |
| Cisco | 2010P | 1 | side | side | SF001-PS1 | ||
| Cisco | 2148 | 1 | 20" | rear | front | SF001-PR2 | |
| Cisco | 2148T-1GE | 1 | 20" | rear | front | SF001-PR2 | |
| Cisco | 2232 | 1 | 17.7" | rear | front | SF001-PR4 | SF001-PR3 |
| Cisco | 2232PP-10GE | 1 | 17.7" | rear | front | SF001-PR4 | SF001-PR3 |
| Cisco | 2248 | 1 | 17.7" | rear | front | SF001-PR4 | SF001-PR3 |
| Cisco | 2248TP | 1 | 17.7" | front | rear | Custom | |
| Cisco | 2248TP | 1 | 17.7" | rear | front | SF001-PR2 | |
| Cisco | 2348TQ | 1 | 17.07" | front | rear | Custom | |
| Cisco | 2348TQ | 1 | 17.07" | rear | front | SF001-PR4 | SF001-PR3 |
| Cisco | 2348UPQ | 1 | 14.05" | rear | front | SF001-PR5 | |
| Cisco | 2620 | 1 | side | rear | SF001-PS1 | ||
| Cisco | 2901 | 1 | 17.3" | front | side | Custom | |
| Cisco | 2911 | 2 | 12" | side | side | Custom | |
| Cisco | 2921 | 2 | 15.5" | rear/side | front | Custom | |
| Cisco | 2950 | 1 | side | rear | SF001-PD1 | ||
| Cisco | 2951 | 2 | 18.5" | rear/side | front | Custom | |
| Cisco | 2960 | 1 | side | rear | SF001-PD1 | ||
| Cisco | 2960-24LC-S | 1 | 13" | sides | rear | SF001-PD1 | |
| Cisco | 2960-24-S | 1 | 9.3" | sides | rear | SF001-PD1 | |
| Cisco | 2960G | 1 | 12.9" | front | rear | Custom | |
| Cisco | 2960G | 1 | 12.9" | rear | front | SF001-PR5 | |
| Cisco | 2960S | 1 | side | rear | SF001-PD1 | ||
| Cisco | 2960-X | 1 | 11-14.5" | rear | front | SF001-PR5 | |
| Cisco | 3048 | 1 | 19.7" | front | rear | Custom | |
| Cisco | 3048 | 1 | 19.7" | rear | front | SF001-PR2 | |
| Cisco | 3064 | 1 | 19.7" | rear | front | SF001-PR2 | |
| Cisco | 3064 | 1 | 19.7" | front | rear | Custom | |
| Cisco | 31128PQ | 2 | 23.7 | front | rear | Custom | |
| Cisco | 31128PQ | 2 | 23.7 | rear | front | SF002-PR1 | |
| Cisco | 3132Q | 1 | 19.7" | rear | front | SF001-PR2 | |
| Cisco | 3172 | 1 | 19.7" | rear | front | SF001-PR2 | |
| Cisco | 3524 | 1 | 18.38" | rear | front | SF001-PR2 | |
| Cisco | 3524 | 1 | 18.38" | front | rear | Custom | |
| Cisco | 3548 | 1 | 18.38" | front | rear | Custom | |
| Cisco | 3548 | 1 | 18.38" | rear | front | SF001-PR2 | |
| Cisco | 3550-24 | 1 | side | rear | SF001-PD1 | ||
| Cisco | 3550-48 | 1 | side | rear | SF001-PD1 | ||
| Cisco | 3560-24 | 1 | side | side | SF001-PS1 | ||
| Cisco | 3560-48 | 1 | side | side | SF001-PS1 | ||
| Cisco | 3560G-24 | 1 | side | side | SF001-PS1 | ||
| Cisco | 3560G-48 | 1 | side | side | SF001-PS1 | ||
| Cisco | 3560x | 1 | 18-19.5" | front/Side | rear | Custom | |
| Cisco | 3650-24P | 1 | 17.625" | front/side | rear | Custom | |
| Cisco | 3650-24T | 1 | 17.625" | front/side | rear | Custom | |
| Cisco | 3650-48F | 1 | 19.125" | front/side | rear | Custom | |
| Cisco | 3650-48P | 1 | 17.625" | front/side | rear | Custom | |
| Cisco | 3650-48T | 1 | 17.625" | front/side | rear | Custom | |
| Cisco | 3750 | 1 | front/side | rear | Custom | ||
| Cisco | 3750-24P | 1 | 17.5" | front/side | rear | Custom | |
| Cisco | 3750-48P | 1 | 17.5" | front/side | rear | Custom | |
| Cisco | 3750E | 1 | side | rear | SF001-PD1 | ||
| Cisco | 3750E-12D | 1 | front | rear | Custom | ||
| Cisco | 3750G | 1 | side | side | SF001-PS1 | ||
| Cisco | 3750X | 1 | 17.5" | front/side | rear | Custom | |
| Cisco | 3850 | 1 | 17.5-19.2" | front | rear | Custom | |
| Cisco | 3850 | 1 | 17.5-19.2" | rear | front | SF001-PR2 | |
| Cisco | 3850-48F-L | 1 | 19.2" | front | rear | Custom | |
| Cisco | 4200 | 1 | sides | rear | SF001-PD1 | ||
| Cisco | 4400 | 1 | right side | left side | SF001-PS1 | ||
| Cisco | 4431-AX/K9 | 1 | 19.97" | front | rear | Custom | |
| Cisco | 4501 | 2 | 19.25" | side | side | Custom | |
| Cisco | 4900M | 2 | side | side | Custom | ||
| Cisco | 4924 | 1 | 16" | sides | rear | SF001-PD1 | |
| Cisco | 4928 | 1 | 16.1" | side | rear | SF001-PD1 | |
| Cisco | 4948 | 1 | 16.14" | sides | rear | SF001-PD1 | |
| Cisco | 4948E | 1 | front | rear | Custom | ||
| Cisco | 4948E-BDL | 1 | front | rear | Custom | ||
| Cisco | 4948E-E | 1 | front | rear | Custom | ||
| Cisco | 4948E-F | 1 | 19.4" | rear | front | SF001-PR2 | |
| Cisco | 4948E-F_BDL | 1 | 19.4" | rear | front | SF001-PR2 | |
| Cisco | 4948E-F-E | 1 | 19.4" | rear | front | SF001-PR2 | |
| Cisco | 4948E-F-S | 1 | 19.4" | rear | front | SF001-PR2 | |
| Cisco | 4948E-S | 1 | front | rear | Custom | ||
| Cisco | 4948-S | 1 | sides | rear | SF001-PD1 | ||
| Cisco | 4980 | 1 | front | rear | Custom | ||
| Cisco | 4980 | 1 | rear | front | SF001-PR4 | SF001-PR3 | |
| Cisco | 5510 | 1 | front | rear | Custom | ||
| Cisco | 5540 | 1 | front | rear | Custom | ||
| Cisco | 5548 | 1 | 29.5" | front | rear | Custom | |
| Cisco | 5548UP | 1 | 29.5" | rear | front | Custom | |
| Cisco | 5550 | 1 | front | rear | Custom | ||
| Cisco | 5555 | 1 | 19.1" | front | rear | Custom | |
| Cisco | 5672UP | 1 | 30" | rear | front | Custom | |
| Cisco | 5672UP | 1 | 30" | front | rear | Custom | |
| Cisco | 6503 | 4 | side | side | Custom | ||
| Cisco | 6504-E | 5 | side | side | Custom | ||
| Cisco | 6506-E (open post only) | 12 | side | side | Custom | ||
| Cisco | 6509 (open post only) | 15 | side | side | Custom | ||
| Cisco | 6509E (open post only) | 15 | r side | l side | Custom | ||
| Cisco | 6509-NEB | 20 | front | rear | Custom | ||
| Cisco | 6509-NEB-A | 21 | front | rear | Custom | ||
| Cisco | 6509-V-E | 21 | front | rear | Custom | ||
| Cisco | 6513E | 19 | r side | l side | Custom | ||
| Cisco | 6807-XL (open post only) | 10 | r side | l side | Custom | ||
| Cisco | 6880-X (open post only) | 5 | r side | l side | Custom | ||
| Cisco | 7009 (open post only) | 14 | side | side | Custom | ||
| Cisco | 7018 (open post only) | 25 | side | side | Custom | ||
| Cisco | 9001 | 2 | side | side | Custom | ||
| Cisco | 9006 | 10 | side | rear | Custom | ||
| Cisco | 903 | 3 | 9.22" | side | side | Custom | |
| Cisco | 9148 | 1 | 18.89" | rear | front | SF001-PR2 | |
| Cisco | 93120TX | 2 | 22.5" | rear | front | SF002-PR2 | |
| Cisco | 93120TX | 2 | 22.5" | front | rear | Custom | |
| Cisco | 93128TX | 3 | 22.5" | 2U rear | front | SF002-PR2 | |
| Cisco | 93180YC | 1 | 22.5" | rear | front | SF001-PR1 | |
| Cisco | 9336 | 2 | 22.5" | rear | front | SF002-PR2 | |
| Cisco | 9336PQ | 2 | 22.5" | front | rear | Custom | |
| Cisco | 9336PQ | 2 | 22.5" | rear | front | SF002-PR2 | |
| Cisco | 9272 | 1 | 22.5" | front | rear | Custom | |
| Cisco | 9272 | 1 | 22.5" | rear | front | SF001-PR1 | |
| Cisco | 9372PX | 1 | 22.5" | rear | front | SF001-PR1 | |
| Cisco | 9372PX | 1 | 22.5" | front | rear | Custom | |
| Cisco | 9372TX | 1 | 22.5" | front | rear | Custom | |
| Cisco | 9372TX | 1 | 22.5" | rear | front | Custom | |
| Cisco | 9396 | 2 | 22.5" | rear | front | SF002-PR2 | |
| Cisco | 9396 | 2 | 22.5" | front | rear | Custom | |
| Cisco | 9396PX | 2 | 22.5" | rear | front | SF002-PR2 | |
| Cisco | 9396PX | 2 | 22.5" | front | rear | Custom | |
| Cisco | 9396TX | 2 | 22.5" | front | rear | Custom | |
| Cisco | 9396TX | 2 | 22.5" | rear | front | SF002-PR2 | |
| Cisco | 9513 | 14 | side | side | Custom | ||
| Cisco | DS-C9396S | 2 | 22.28" | rear | front | SF002-PR2 | |
| Cisco | S50 | 1 | side | side | SF001-PS1 | ||
| Dell | 2848 | 1 | 10" | side | side | SF001-PS1 | |
| Dell | 5524 | 1 | side | side | SF001-PS1 | ||
| Dell | 5548 | 1 | side | side | SF001-PS1 | ||
| Dell | 5548 | 1 | side | side | SF001-PS1 | ||
| Dell | 6224 | 1 | side | side | SF001-PS1 | ||
| Dell | 6248 | 1 | side | side | SF001-PS1 | ||
| Dell | 7024 | 1 | side | side | SF001-PS1 | ||
| Dell | 7048 series | 1 | side | side | SF001-PS1 | ||
| Dell | 8024 series | 1 | front | rear | Custom | ||
| Dell | 8132 | 1 | front | rear | Custom | ||
| Dell | 8132F | 1 | front | rear | Custom | ||
| Dell | 8164 | 1 | front | rear | Custom | ||
| Dell | 8164F | 1 | front | rear | Custom | ||
| Dell | N4032F | 1 | 18.11" | front | rear | Custom | |
| Dell | N4064 | 1 | front | rear | Custom | ||
| Dell | S3048 | 1 | 12.6" | rear | front | SF001-PR5 | |
| Dell | S4048 | 1 | 17.13" | rear | front | SF001-PR4 | SF001-PR3 |
| Dell | S4810 | 1 | 18.11" | rear | front | SF001-PR2 | |
| Dell | S4810 | 1 | 18.11" | front | rear | Custom | |
| Dell | S4820T | 1 | 18.11" | front | rear | Custom | |
| Dell | S4820T | 1 | 18.11" | rear | front | SF001-PR2 | |
| Dell | S6000 | 1 | 18.11" | front | rear | Custom | |
| Dell | S6000 | 1 | 18.11" | rear | front | SF001-PR2 | |
| Extreme Networks | Summit X430 | 1 | side | side | SF001-PS1 | ||
| Extreme Networks | Summit X450A | 1 | 15.3" | side | side | SF001-PS1 | |
| Extreme Networks | Summit X670V-48x | 1 | 19.25" | front | rear | Custom | |
| Extreme Networks | Summit X670V-48x | 1 | 19.25" | rear | front | SF001-PR2 | |
| F5 | F5-1500 | 1 | R-side | L-side | SF001-PS1 | ||
| F5 | F5-1600 | 1 | front | rear | Custom | ||
| Fortinet | Fortigate 800C | 1 | sides | rear | SF001-PD1 | ||
| Gigimon | 2404 | 2 | 19.25" | side | side | Custom | |
| HP | 2824 | 1 | L-R sides | rear | SF001-PD1 | ||
| HP | 2900-48G | 1 | side | side | SF001-PS1 | ||
| HP | 2910AI-48G | 1 | side | side | SF001-PS1 | ||
| HP | 2920 series | 1 | 13.23" | side | side | SF001-PS1 | |
| HP | 5130 JG937A | 1 | 14.2" | side | side | SF001-PS1 | |
| HP | 5406ZL | 4 | side | side | Custom | ||
| HP | 5412ZL | 7 | side | side | Custom | ||
| HP | 5500 EI | 1 | L-side | R-side | SF001-PS1 | ||
| HP | 5500 JG312A | 1 | 16.5" | side | side | SF001-PS1 | |
| HP | 5500 SI | 1 | L-side | R-side | SF001-PS1 | ||
| HP | 5500-48G-4SFP-HI | 1 | 16.5" | L-side | R-side | SF001-PS1 | |
| HP | 5700 | 1 | 18.1" | rear | front | SF001-PR2 | |
| HP | 5800 JC103A | 1 | 16.81" | side | side | SF001-PS1 | |
| HP | 5900 | 1 | 17.75" | rear | front | SF001-PR4 | SF001-PR3 |
| HP | 6000B | 1 | 17.45" | rear | front | SF001-PR4 | SF001-PR3 |
| HP | 6000B | 1 | 17.45" | front | rear | Custom | |
| HP | DL360 G6 | 1 | front | rear | Custom | ||
| Huawei | CE5810/CE5850/CE5855 | 1 | 420mm | /Rear | /Front | SF001-PR4 | SF001-PR3 |
| Huawei | S2700-18TP/26TP | 1 | 220mm | Left Side | Right Side | SF001-PD1 | |
| Huawei | S2700-52P | 1 | 220mm | Both sides | Rear | SF001-PD1 | |
| Huawei | S2700-PWR | 1 | 420mm | Both sides | Rear | SF001-PD1 | |
| Huawei | S3700 | 1 | 420mm | Left Side | Right Side | SF001-PD1 | |
| Huawei | S5270S=SI | 1 | 220mm | Left Side | Right Side | SF001-PD1 | |
| Huawei | S5700-EI | 1 | 420mm | Left Side | Right Side | SF001-PD1 | |
| Huawei | S5700-HI | 1 | 220mm | Both sides | Rear | SF001-PD1 | |
| Huawei | S5700-SI/LI | 1 | 420mm | Left Side | Right Side | SF001-PD1 | |
| Huawei | S5710-108C-PWR-HI | 1 | 470mm | Both sides | Rear | Custom | |
| Huawei | S5720-EI-C/PC | 1 | 420mm | Left Side | Right Side | SF001-PD1 | |
| Huawei | S5720-EI-P/X | 1 | 220mm | Left Side | Right Side | SF001-PD1 | |
| Huawei | S5720-HI | 1 | 420mm | Left Side | Right Side | SF001-PD1 | |
| Huawei | S5720-SI | 1 | 420mm | Left Side | Right Side | SF001-PD1 | |
| Huawei | S6700-24-EI/S6700-48-EI | 1 | 420mm | Both sides | Rear | SF001-PD1 | |
| Huawei | S6720-30C | 1 | 420mm | Both sides | Rear | SF001-PD1 | |
| Huawei | S6720-54C | 1 | 420mm | Both sides | Rear | SF001-PD1 | |
| Intel Omnipath | 100 series | 1 | 17.15" | rear | front | SF001-PR4 | SF001-PR3 |
| Juniper | EX2200-24P | 1 | sides | rear | SF001-PD1 | ||
| Juniper | EX2200-24T | 1 | sides | rear | SF001-PD1 | ||
| Juniper | EX2200-24T-DC | 1 | sides | rear | SF001-PD1 | ||
| Juniper | EX2200-48P | 1 | sides | rear | SF001-PD1 | ||
| Juniper | EX2200-48T | 1 | sides | rear | SF001-PD1 | ||
| Juniper | EX2200-C-12P POE | 1 | na | na | Custom | ||
| Juniper | EX2200-C-12T non POE | 1 | top -sides | rear | SF001-PD1 | ||
| Juniper | EX3300 | 1 | 12" | front | rear | Custom | |
| Juniper | EX3300 | 1 | 12" | rear | front | SF001-PR5 | |
| Juniper | EX4200 | 1 | sides | rear | SF001-PD1 | ||
| Juniper | EX4300 | 1 | 16.5" | rear | front | SF001-PR4 | SF001-PR3 |
| Juniper | EX4300-48T-AFI | 1 | 16.5" | rear | front | SF001-PR4 | SF001-PR3 |
| Juniper | EX4550 | 1 | 18.5" | rear | front | SF001-PR2 | |
| Juniper | J6350 | 2 | 21.13" | front | rear | Custom | |
| Juniper | MAG6610 | 1 | 27.25" | front | rear | Custom | |
| Juniper | MX480 | 8 | side | side | Custom | ||
| Juniper | NS5200 | 2 | side | side | Custom | ||
| Juniper | QFX5100-48S-AFI | 1 | 20.5" | rear | front | SF001-PR2 | |
| Juniper | QFX5100-48T-AFI | 1 | 20.48" | front | rear | Custom | |
| Juniper | QFX5100-48T-AFI | 1 | 20.48" | rear | front | SF001-PR2 | |
| Juniper | SA4000 | 1 | side | rear | SF001-PS1 | ||
| Juniper | SRX1400 | 3 | 13.8" | l-side | r-side | Custom | |
| Juniper | SRX240 | 1 | side | side | SF001-PS1 | ||
| Juniper | SRX3600 | 5 | 25.5" | side | side | Custom | |
| Juniper | SRX5400 | 5 | 24.5" | r-side | l-side | Custom | |
| Juniper | SRX550 | 2 | 18.2" | side | side | Custom | |
| Juniper | SRX650 | 2 | 18.2" | l-side | r-side | Custom | |
| Juniper | SSG320M | 1 | 15.1" | side | side | SF001-PS1 | |
| Juniper | SSG550M | 2 | front | rear | Custom | ||
| Juniper | WLC2800 | 2 | sides | rear | Custom | ||
| Mellanox | SX-6036G | 1 | 24.7" | rear | front | Custom | |
| NetGear | GS7252TXS | 1 | 10.1" | side | side | SF001-PS1 | |
| NetGear | GSM 7224S | 1 | sides | rear | SF001-PD1 | ||
| NetGear | GSM 7252S (M5300) | 1 | sides | rear | SF001-PD1 | ||
| NetGear | XSM 7224S | front | rear | Custom | |||
| Palo Alto Networks | M100 | 1 | front | rear | Custom | ||
| Palo Alto Networks | PA 5060 | 2 | 21" | side | side | Custom | |
| Palo Alto Networks | PA3020 | 1 | 17" | side | side | SF001-PS1 | |
| SMC | SMCGS18C-Smart | 1 | 11" | side | side | SF001-PS1 | |
| Sonic | NSA 3500 | 1 | side | rear | SF001-PD1 | ||
| Watchguard-Firebox | M440 | 1 | 15" | front | rear | Custom | |
| ZTE | 2850-18TM/26TM | 1 | 200mm | Left Side | Right Side/Rear | SF001-PD1 | |
| ZTE | 2850-52TC | 1 | 280mm | Left Side | Right Side/Rear | SF001-PD1 | |
| ZTE | 2850-9TT/9TS | 1 | 130mm | Left Side | Right Side/Rear | SF001-PD1 | |
| ZTE | 2950-10TC/2950-10PC | 1 | 220mm | Left Side | Right Side/Rear | SF001-PD1 | |
| ZTE | 2950-18TC/28TC/18PC/ | 1 | 220mm | Left Side | Right Side | SF001-PD1 | |
| ZTE | 2950-28PM/2950-52PM | 1 | 440mm | Left Side | Right Side | SF001-PD1 | |
| ZTE | 2950-52TS | 1 | 280mm | Left Side | Right Side/Rear | SF001-PD1 | |
| ZTE | 3928E | 1 | 220mm | Left Side | Right Side | SF001-PD1 | |
| ZTE | 3950-28TM/28PM/28SM | 1 | 280mm | Left Side | Right Side | SF001-PD1 | |
| ZTE | 3950-52TC | 1 | 360mm | Left Side | Right Side/Rear | SF001-PD1 | |
| ZTE | 3952E | 2 | 220mm | Left Side | Right Side | Custom | |
| ZTE | 5250-12TC/5250-12PC | 1 | 220mm | Left Side | Right Side/Rear | SF001-PD1 | |
| ZTE | 5250-28TM-L | 1 | 440mm | Left Side | Right Side/Rear | SF001-PD1 | |
| ZTE | 5250-28TS-L | 1 | 220mm | Left Side | Right Side/Rear | SF001-PD1 | |
| ZTE | 5916E/5928E | 1 | 220mm | Left Side | Right Side | SF001-PD1 | |
| ZTE | 5950-24T/28TM/28PM | 1 | 360mm | Left Side | Right Side | SF001-PD1 | |
| ZTE | 5950-28TM | 1 | 320mm | Left Side | Right Side | SF001-PD1 | |
| ZTE | 5950-48T/52SM | 1 | 400mm | Left Side | Right Side | SF001-PD1 | |
| ZTE | 5952E | 2 | 220mm | Left Side | Right Side | Custom | |
| ZTE | 5960 | 1 | 440mm | /Rear | /Front | SF001-PR4 | SF001-PR3 |
| Cisco | 9236 | 1 | 22.5" | Rear | Front | SF001-PR1 | |
| Arista | 7260QX | 2 | 18" | Rear | Front | SF002-PR3 | |
| NetGear | M4300 | 1 | Front | Rear | Custom | ||
| Brocade | 6510 | 1 | 17.23" | Rear | Front | SF001-PR4 | SF001-PR3 |
| ARISTA | 7050S | 1 | 16" | Rear | Front | SF001-PR4 | SF001-PR3 |
| ARISTA | 7050S | 1 | 16" | Front | Rear | Custom | |
| Cisco | SG300 | 1 | 13.78: | Side | Side | SF001-PS1 | |
| Cisco | SG350 | 1 | 13.78" | Side | Side | SF001-PS1 | |
| Audiocodes | Mediant 3000 | 2 | 30CM | Side | Side | Custom | |
| Cisco | NCS-5501 | 1 | 21.7" | Rear | Front | SF001-PR1 | |
| Cisco | NCS-5501 | 1 | 21.7" | Front | Rear | Custom | |
| Cisco | ASR 903 | 3 | Side | Side | Custom | ||
| Cisco | ASR 907 | 7 | Side | Side | Custom | ||
| Cisco | ASR 9006 | 10 | Side | Rear | Custom | ||
| Nokia | 7750-SR7 | 8 | Side | Rear | Custom | ||
| Huawei | CX-600-X1 | 3 | Side | Side | Custom | ||
| Huawei | CX600-X2 | 5 | Side | Side | Custom | ||
| Avaya | 4826 | 1 | Side | Side | SF001-PS1 | ||
| Avaya | 4850 | 1 | Side | Side | SF001-PS1 | ||
| Arista | 7280QR | 1 | 20.6" | Rear | Front | SF001-PR2 | |
| Arista | 7280QR | 1 | 20.6" | Front | Rear | Custom | |
| Arista | 7280SR | 1 | 16" | Rear | Front | SF001-PR4 | SF001-PR3 |
| Arista | 7280SR | 1 | 16" | Front | Rear | Custom | |
| Arista | 7280TR | 1 | 16" | Rear | Front | SF001-PR4 | SF001-PR3 |
| Arista | 7280TR | 1 | 16" | Front | Rear | Custom | |
| Arista | 7050SX-128 | 2 | 18.1" | Rear | Front | SF002-PR3 | |
| Arista | 7050SX-64 | 1 | 16" | Rear | Front | SF001-PR4 | SF001-PR3 |
| Arista | 7050SX-72Q | 1 | 16" | Rear | Front | SF001-PR4 | SF001-PR3 |
| Arista | 7260QX-64 | 2 | 18" | Rear | Front | SF002-PR3 | |
| Arista | 7280CR-48 | 2 | 22.2" | Rear | Front | SF002-PR2 | |
| Arista | 7280SE-64 | 1 | 20.6" | Rear | Front | SF001-PR2 | |
| Arista | 7280SR-48C6 | 1 | 16" | Rear | Front | SF001-PR4 | SF001-PR3 |
| Cisco | 3048TP | 1 | 19.7" | Rear | Front | SF001-PR2 | |
| Cisco | 9272Q | 2 | 24.5" | Rear | Front | SF002-PR1 | |
| Cisco | 9236C | 1 | 22.5" | Rear | Front | SF001-PR1 | |
| Avaya | VSP7254XSQ | 1 | 18.25" | Rear | Front | SF001-PR2 | |
| Avaya | VSP7254XSQ | 1 | 18.25" | Front | Rear | Custom | |
| Juniper | QFX5200 | 1 | 20.48" | Rear | Front | SF001-PR2 | |
| Brocade | 6505 | 1 | 17.45" | Rear | Front | SF001-PR4 | SF001-PR3 |
| HP | A5500 48G EL | 1 | Side | side | SF001-PS1 |
